factory Outlets for Capacitor Ic - AXT380224 80PIN BTB – Grakey Detail:

General

1.1 Application

This specification is applicable to the relevant requirements of USB TYPE-C series products.

1.2 Operating Temperature Range

-25℃～85℃（Normal humidity,normal air pressure）

1.3 Storage Temperature Range

-25℃～70℃（Normal humidity,normal air pressure）

1.4 Test Conditions

Unless otherwise specified,tests and measurement shall be made in the following standard conditions:

Normal temperature…………………5℃～35℃

Normal humidity………………………relative humidity 45%～85%

Normal air pressure……………………86Kpa～106Kpa

Detailed Specification

2.1 Appearance: There should be no defects that affect the serviceability of product.

2.2 Style and dimension：shall conform to the assemble drawings.

Product Performance

NO.

Project

Test conditions

Requirement

3.1

 Contact

Resistance

Applying astatic load twice the actuating    force to the center of the stem,measurements shall be made with a 1 kHz small-current     contact resistance meter.

≤50mΩ

3.2

Insulation

Resistance

Measurements shall be made following         application of DC500V potintial across       terminals and across terminals and frame for one minute.

≥100MΩ

3.3

Dielectric

voltage proof

AC500V(50Hz or60Hz) shall be applied across  terminals and across terminals and frame for one minute.

No Breakdown, No Flying Fox

3.4

Insertion

force

Fixed the base and the head, and exerted the specified pressure on the direction of the   axis of the head.

0.5~2.0 kgf

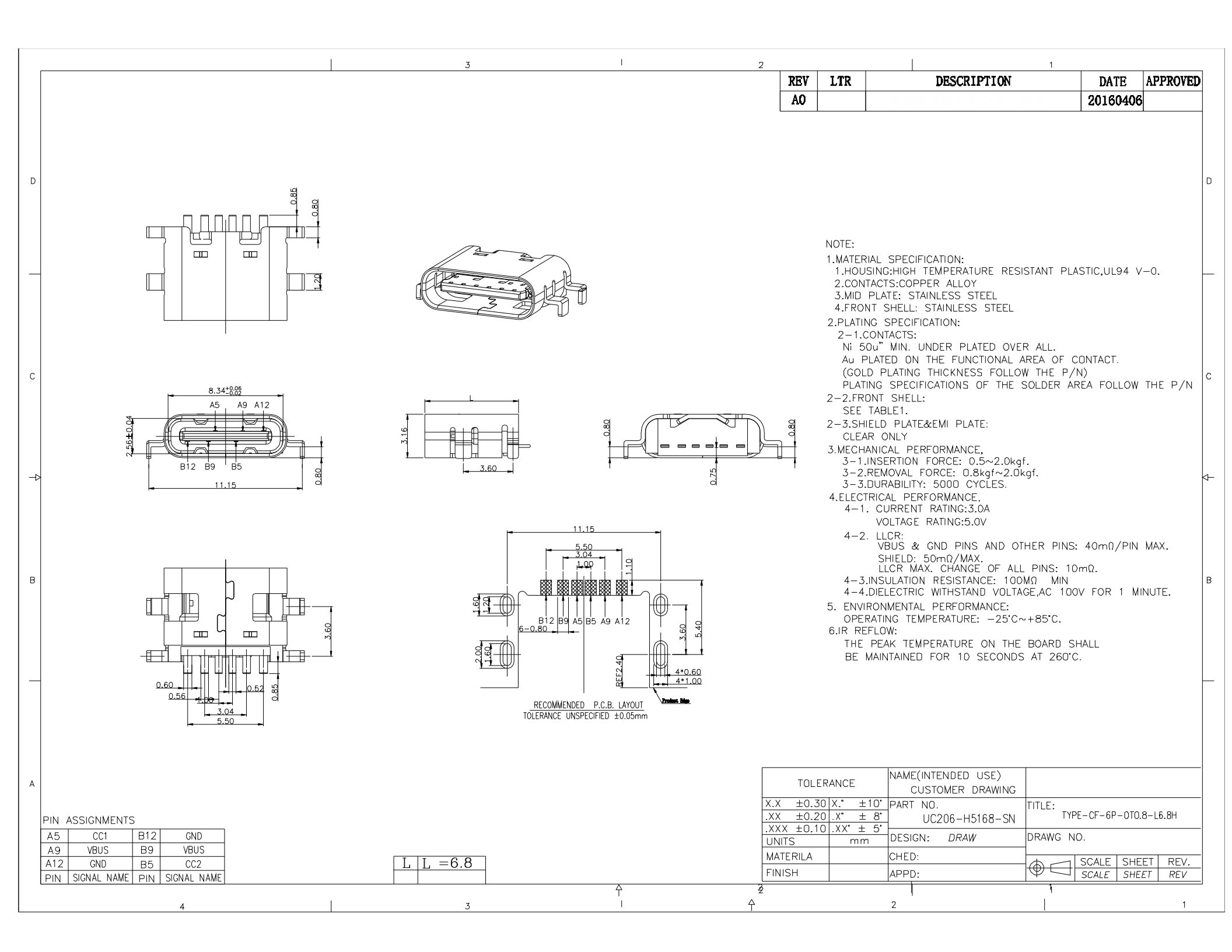

Drawing


TYPE-CF-6P-OT0.8-L6.8H_（UC206-H5168-SN)_00
